Mô tả Sản phẩm
GROHE Rapid SLX installation system for wall-hung toilets – durable design that lasts long into the future.
A seamless wall-hung toilet is a fantastic design statement in the ultimate bathroom and the perfect solution is the GROHE Rapid SLX installation system, which has heavy load feet for added stability. It also supports GROHE’s elegant and stylish new range of extra slim flush plates, which simply plug onto the drain valves with our EasyConnect system. Extra strong and versatile, Rapid SLX has an attractive powder-coated steel frame and guarantees understated performance you can trust – it's TÜV approved for a load of 400kg! Supplied with all the fixings you need, including heavy load feet, GROHE QuickFix makes installation (height 1.13 m) logical and fast, but also ready for any future changes you may wish to make. The unique flow manager means you can easily adjust the water flow so it can also be used with any new toilet, including rimless WCs, which use water under less pressure. The Plug & Play design includes an electric socket and water connection so you can easily add a shower toilet – the stylish GROHE Sensia Arena would look fantastic. And any upgrade is easy to make because the generous Direct Access Door gives you plenty of room to work. The GROHE Whisper technology of the dual-flush cistern helps stop sound travelling through walls – so you can enjoy peace and quiet. And GROHE EcoJoy cuts your water usage by up to 50%. Simply select a flush volume of either 3l or 6l and, if you prefer, stop a full flush before it’s over. It is also fully insulated against condensation and comes with wall brackets for use with a brick or stud wall. Strength and premium performance for an elegant and harmonious bathroom design – that's GROHE Rapid SLX!
- for free-standing installation, for on-the-wall installations or studded walls
- with integrated socket for shower toilets (power)
- ready for shower toilets (water)
- suitable for installation of 70 cm toilets
- small revision shaft for small flush plates
- powder coated steel frame, self-supporting
- for dry-cladding, completely pre-assembled
- with fixed connections
- lockable
- fixing material
- 2 WC fixing bolts
- fixing device for ceramic
- distance of fixing bolts 180/230 mm
- adapter 100 mm
- 90° rotatable PVC outlet bend 100 mm
- spacer Ø 80 mm
- inlet and outlet connecting set
- * Cần quyết định khi lắp đặt lần đầu; thiết lập mặc định tại nhà máy: GROHE PureRain
- flushing cistern GDX, 6 l, containing following features:
- adjustment ex factory 6l and 3l
- pneumatic discharge valve offering 3 modes of operation: dual flush or start/stop or single flush
- water inlet inside
- water supply from right, back or top
- low noise (group I acc. to German Noise Specification)
- fully insulated against condensation
- ½" water supply connection including integrated angle valve and push fit flexible hose union
- no tools required for the installation of the inspection shaft incl. protection during construction phase
- for vertical use
- * Cần quyết định khi lắp đặt lần đầu; thiết lập mặc định tại nhà máy: GROHE PureRain
- including wall brackets 38 558 00M for on-the-wall installation
- including flow manager
- reduces flow of the flush
- prevents overspill in rimless toilets
- easy flow regulation via inspection shaft without removing the valves
Thông tin kỹ thuật
Dữ liệu CAD

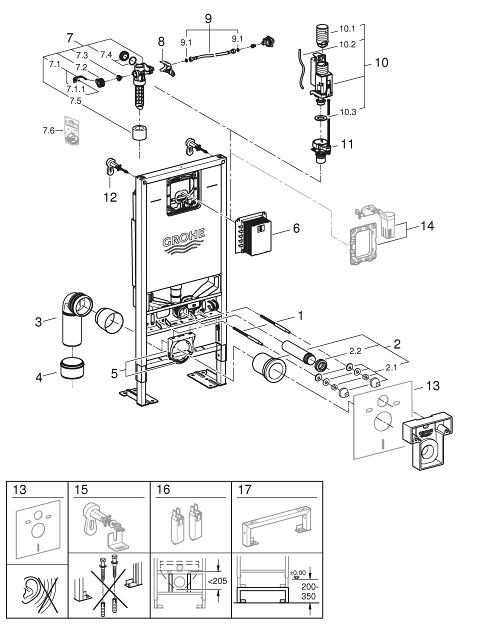

Phụ kiện lắp đặt
Vị trí | Mô tả sản phẩm | Số đơn hàng |
---|---|---|
* Phụ kiện đặc biệt | ||
1 | Threaded bolt | 4276400M |
2 | WC inlet and outlet connecting set | 37311K00 |
2.1 | Basin fastening | 43511SH0 |
2.2 | Connector | 37119000 |
3 | PVC waste bend | 42216000 |
4 | Distance pipe 3" | 42766000 |
5 | Support for outlet bend | 42243000 |
6 | Revision shaft for small flush plates | 40911000 |
7 | Filling valve | 42583000 |
7.1 | Lever | 43734000 |
7.1.1 | Ball seal dia. 9x6.8 mm | 4377000M |
7.2 | Valve head | 43536000 |
7.3 | Membrane | 4375800M |
7.4 | Screw cap | 43735000 |
7.5 | Valve float, 5 pcs. | 4379100M |
7.6 | Repl. kit f. seal | 43722000* |
8 | Support device | 42246000 |
9 | Tube | 42233000 |
9.1 | Seat washer | 0319100M |
10 | Dual Flush discharge valve AV1 | 42320000 |
10.1 | Extension for overflow pipe | 42313000 |
10.2 | pneumatic hose | 42319000 |
10.3 | Ball seal dia. 9x6.8 mm | 42310000 |
11 | Valve seat | 42593000 |
12 | Wall union | 3855800M |
13 | Set for noise protection | 37131000* |
14 | Xtra wall brackets, flexible placing | 38733000* |
15 | Accessory | 39607000* |
16 | Extension | 38629001* |
