Amera Shower System
Mã sản phẩm
27013000
Mã vạch
4005176278310
Màu
chrome
This product will be discontinued soon
- for wall mounting
- consisting of:
- Tempered/safety glass:
- 8 mm
- printed on the reverse side
- Showers:
- 1 head shower with wide spray
- 1 handshower Relexa Cosmopolitan Top 4 with wide, Turbo Jet, champagne and pulsator spray
- 4 adjustable side showers with adjustable spray directions and flow rates
- all showers equipped with SpeedClean
- Fittings:
- Premounted installation unit in frame
- 1 thermostat 1/2"
- 1 Aquadimmer for hand and head showers
- 1 shut-off valve for side showers
- Dây sen Relexaflex 28 151 dài 1500 mm
- Dây cấp linh hoạt
- insertable from 1,5 bar flow pressure
- not suitable for instantaneous heater

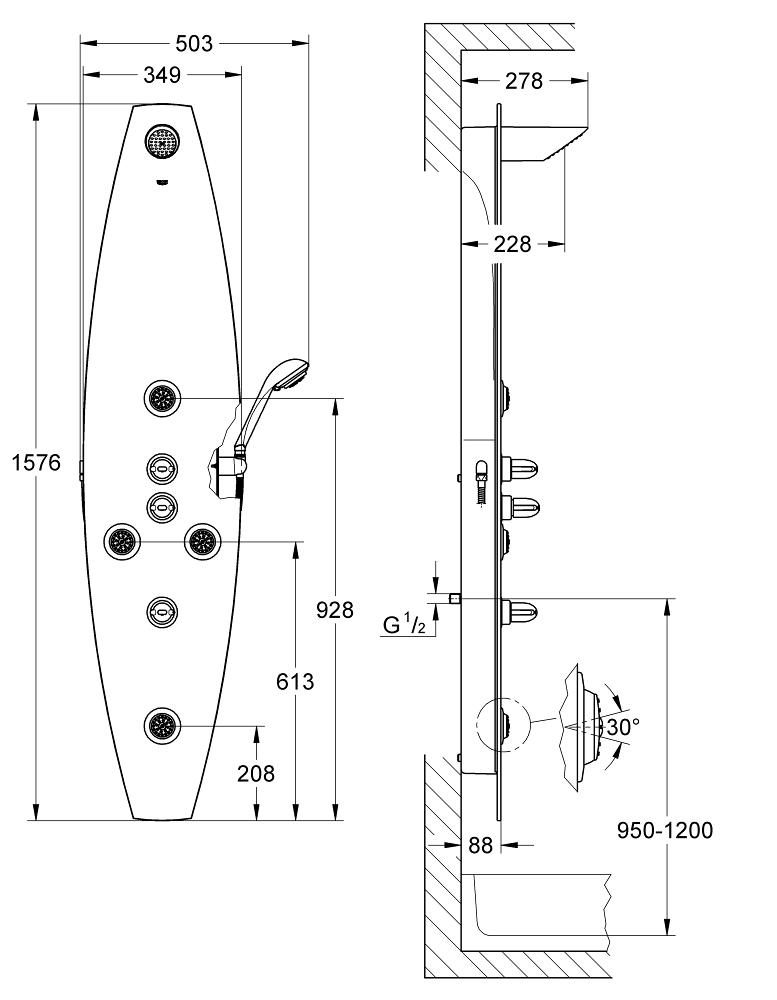

Dữ liệu CAD

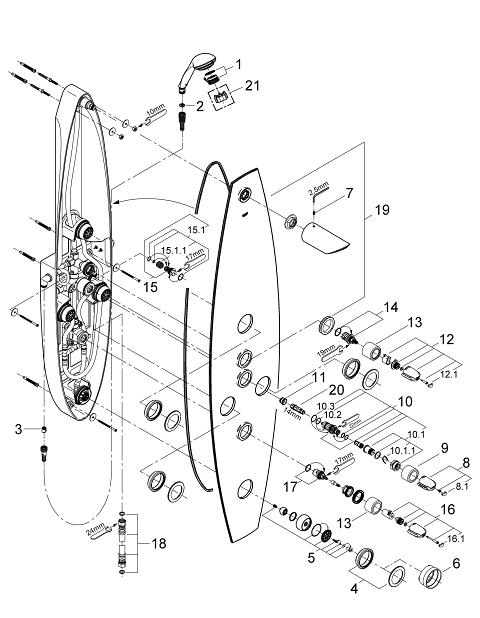

| Vị trí | Mô tả sản phẩm | Số đơn hàng |
|---|---|---|
| * Phụ kiện đặc biệt | ||
| 1 | Replacement pulsator element | 45656XX0 |
| 2 | Dirt strainer | 0700200M |
| 3 | Non-return valve | 08565000 |
| 4 | Escutcheon | 09532000 |
| 5 | Spray faceplate | 45661XX0 |
| 6 | Installation tool | 09813000 |
| 7 | Thread pin | 0212500M |
| 8 | Scale handle | 47440IP0 |
| 8.1 | Cap | 02490P0M |
| 9 | Sleeve | 04952000 |
| 10 | Thermo-element 1/2" | 47217000 |
| 10.1 | Stop ring + regulating nut | 47300000 |
| 10.1.1 | Fixing clamp | 0574400M |
| 10.2 | O-ring ø21 x ø2 | 0599900M |
| 10.3 | O-ring ø24 x ø2 | 0119600M |
| 11 | Seat for thermostat | 01460000 |
| 12 | Handle for shut-off valve | 47014IP0 |
| 12.1 | Cap | 02490P0M |
| 13 | Sleeve | 02730000 |
| 14 | Aquadimmer | 47364000 |
| 15 | Non-return valve 1/2" | 1411600M |
| 15.1 | Repl. kit f. seal | 47303000 |
| 15.1.1 | Dirt strainer | 0299000M |
| 16 | Handle for shut-off valve | 47039IP0 |
| 16.1 | Cap | 02490P0M |
| 17 | Ceramic headpart 3/4", 180° | 45885000 |
| 18 | Tube | 07227000 |
| 19 | Glass shelf | 12544TG0 |
| 20 | Socket spanner | 19070000* |
| 21 |
Disassembling key (for Relexa Plus, Relexa Cosmopolitan face plate) |
45654000* |
