Rapid SLX Element for WC, 1.13 m installation height with integrated socket and shower toilet connection

Rapid SLX Element for WC, 1.13 m installation height with integrated socket and shower toilet connection Rapid SLX Element for WC, 1.13 m installation height with integrated socket and shower toilet connection Rapid SLX Element for WC, 1.13 m installation height with integrated socket and shower toilet connection Rapid SLX Element for WC, 1.13 m installation height with integrated socket and shower toilet connection
Mã sản phẩm
39596000
Mã vạch
4005176527494
Thông số kỹ thuật sản phẩm (PDF)

Mô tả Sản phẩm

GROHE Rapid SLX installation system for wall-hung toilets – sleek, robust and ready for the future.

To create the bathroom of your dreams complete with wall-hung toilet check out the GROHE Rapid SLX installation system. The Rapid SLX also supports GROHE’s elegant and stylish new range of extra slim flush plates, which simply plug onto the drain valves using our EasyConnect system. Extra strong and versatile, Rapid SLX has an attractive powder-coated steel frame and guarantees understated performance you can trust – it's TÜV approved for a load of 400kg! Supplied with all the fixings you need, GROHE QuickFix makes installation (height 1.13 m) logical and fast, but also ready for any future changes you may wish to make. The unique flow manager means you can easily adjust the water flow so it can also be used with any new toilet, including rimless WCs, which use less pressure. The Plug & Play design includes an electric socket and water connection so you can easily add a shower toilet – the stylish GROHE Sensia Arena would look fantastic. And any upgrade is easy to make because the generous Direct Access Door gives you plenty of room to work. The GROHE Whisper technology of the dual-flush cistern helps stop sound travelling through walls – so you can enjoy peace and quiet. And GROHE EcoJoy cuts your water usage by up to 50%. Simply select a flush volume of either 3l or 6l and, if you prefer, stop a full flush before it’s over. It is also fully insulated against condensation and comes with wall brackets for use with a brick or stud wall. GROHE Rapid SLX – strength and premium performance for an elegant and harmonious bathroom design!

  • with integrated power socket
  • ready for shower toilets (water)
  • small revision shaft for small flush plates
  • for on-the-wall installations or studded walls
  • powder coated steel frame, self-supporting
  • for dry-cladding, completely pre-assembled
  • with fixed connections
  • quick adjustment, lockable
  • fixing material
  • TÜV approved
  • 2 WC fixing bolts
  • fixing device for ceramic
  • distance of fixing bolts 180/230 mm
  • outlet bend Ø 90 mm
  • depth adjustable
  • reducer Ø 90/110 mm
  • inlet and outlet connecting set
  • flushing cistern GDX, 6 l, containing following features:
  • adjustment ex factory 6l and 3l
  • pneumatic discharge valve offering 3 modes of operation: dual flush or start/stop or single flush
  • water supply from right, back or top
  • low noise (group I acc. to German Noise Specification)
  • fully insulated against condensation
  • ½" water supply connection including integrated angle valve and push fit flexible hose union
  • no tools required for the installation of the inspection shaft incl. protection during construction phase
  • for vertical use
  • * Cần quyết định khi lắp đặt lần đầu; thiết lập mặc định tại nhà máy: GROHE PureRain
  • including flow manager
  • reduces flow of the flush
  • prevents overspill in rimless toilets
  • easy flow regulation via inspection shaft without removing the valves
  • for on-the-wall installation please order wall brackets 38 558 00M (sold separately)
  • for mounting of flush plates 156 x 197 mm please order revision shaft 66 791 000 (sold separately)

Thông tin kỹ thuật

Dữ liệu CAD

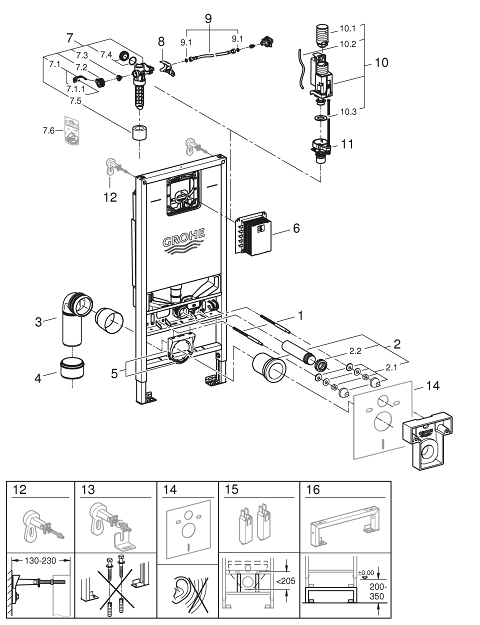

Phụ kiện lắp đặt

Vị trí Mô tả sản phẩm Số đơn hàng
* Phụ kiện đặc biệt
1 Threaded bolt 4276400M
2 WC inlet and outlet connecting set 37311K00
2.1 Basin fastening 43511SH0
2.2 Connector 37119000
3 PP-outlet bend Ø 90 mm 42327000
4 4" Outlet Adaptor F Rapid Sl 42242000
5 Support for outlet bend 42243000
6 Revision shaft for small flush plates 40911000
7 Filling valve 42583000
7.1 Lever 43734000
7.1.1 Ball seal dia. 9x6.8 mm 4377000M
7.2 Valve head 43536000
7.3 Membrane 4375800M
7.4 Screw cap 43735000
7.5 Valve float, 5 pcs. 4379100M
7.6 Repl. kit f. seal 43722000*
8 Support device 42246000
9 Tube 42233000
9.1 Seat washer 0319100M
10 Dual Flush discharge valve AV1 42320000
10.1 Extension for overflow pipe 42313000
10.2 pneumatic hose 42319000
10.3 Ball seal dia. 9x6.8 mm 42310000
11 Valve seat 42593000
12 Wall union 3855800M*
13 Xtra wall brackets, flexible placing 38733000*
14 Set for noise protection 37131000*
15 Accessory 39607000*
16 Extension 38629001*
