Mô tả Sản phẩm
Robust, extra quiet and future ready – enjoy the GROHE Rapid SLX installation system for wall-hung toilets!
To create the ultimate modern bathroom including a wall-hung toilet choose out the GROHE Rapid SLX 3-in-1 installation system, which comes with wall brackets and noise protection set. The Rapid SLX also supports GROHE’s elegant and stylish new range of extra slim flush plates, which simply plug onto the drain valves using our EasyConnect system. Extra strong and versatile, Rapid SLX has an attractive powder-coated steel frame and guarantees understated performance you can trust – it's TÜV approved for a load of 400kg! GROHE QuickFix makes installation (height 1.13 m) logical and fast, but also ready for any future changes you may wish to make. The unique flow manager means you can easily adjust the water flow so it can also be used with any new toilet, including rimless WCs, which use water under less pressure. The Plug & Play design includes an electric socket and water connection so you can easily add a shower toilet – the stylish GROHE Sensia Arena would look fantastic. And any upgrade is easy to make because the generous Direct Access Door gives you plenty of room to work. The GROHE Whisper technology of the dual-flush cistern helps stop sound travelling through walls – so you can enjoy peace and quiet. And GROHE EcoJoy cuts your water usage by up to 50%. Simply select a flush volume of either 3l or 6l and, if you prefer, stop a full flush before it’s over. It is also fully insulated against condensation. Strength and premium performance for an elegant and harmonious bathroom design – that's GROHE Rapid SLX!
- Bao gồm:
- Rapid SLX element for WC (39 596 000) with integrated power socket
- wall brackets (38 558 00M)
- noise protection (37 131 000)
- including flow manager
- for mounting of flush plates 156 x 197 mm please order revision shaft 66 791 000 (sold separately)
Thông tin kỹ thuật
Dữ liệu CAD
Phụ kiện lắp đặt

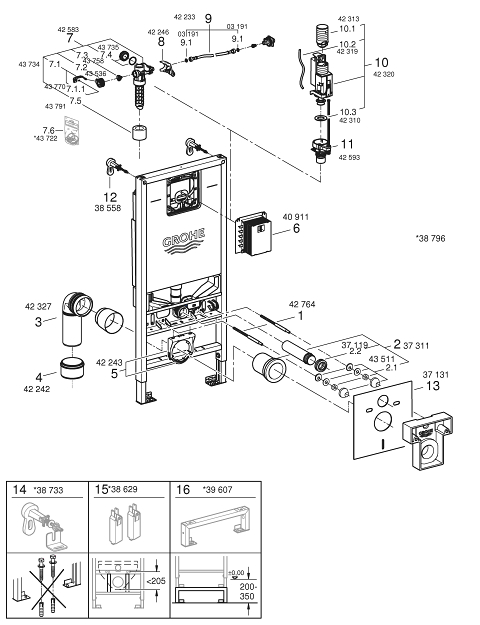

Vị trí | Mô tả sản phẩm | Số đơn hàng |
---|---|---|
* Phụ kiện đặc biệt | ||
1 | Threaded bolt | 4276400M |
2 | WC inlet and outlet connecting set | 37311K00 |
2.1 | Basin fastening | 43511SH0 |
2.2 | Connector | 37119000 |
3 | PP-outlet bend Ø 90 mm | 42327000 |
4 | 4" Outlet Adaptor F Rapid Sl | 42242000 |
5 | Support for outlet bend | 42243000 |
6 | Revision shaft for small flush plates | 40911000 |
7 | Filling valve | 42583000 |
7.1 | Lever | 43734000 |
7.1.1 | Ball seal dia. 9x6.8 mm | 4377000M |
7.2 | Valve head | 43536000 |
7.3 | Membrane | 4375800M |
7.4 | Screw cap | 43735000 |
7.5 | Valve float, 5 pcs. | 4379100M |
7.6 | Repl. kit f. seal | 43722000* |
8 | Support device | 42246000 |
9 | Tube | 42233000 |
9.1 | Seat washer | 0319100M |
10 | Dual Flush discharge valve AV1 | 42320000 |
10.1 | Extension for overflow pipe | 42313000 |
10.2 | pneumatic hose | 42319000 |
10.3 | Ball seal dia. 9x6.8 mm | 42310000 |
11 | Valve seat | 42593000 |
12 | Wall union | 38558000 |
13 | Set for noise protection | 37131000 |
14 | Xtra wall brackets, flexible placing | 38733000* |
15 | Extension | 38629000* |
16 | Accessory | 39607000* |
