GROHE Fresh retro-fit set
Mã sản phẩm
38797000
Mã vạch
4005176857041
Màu
Download specification
This product will be discontinued soon

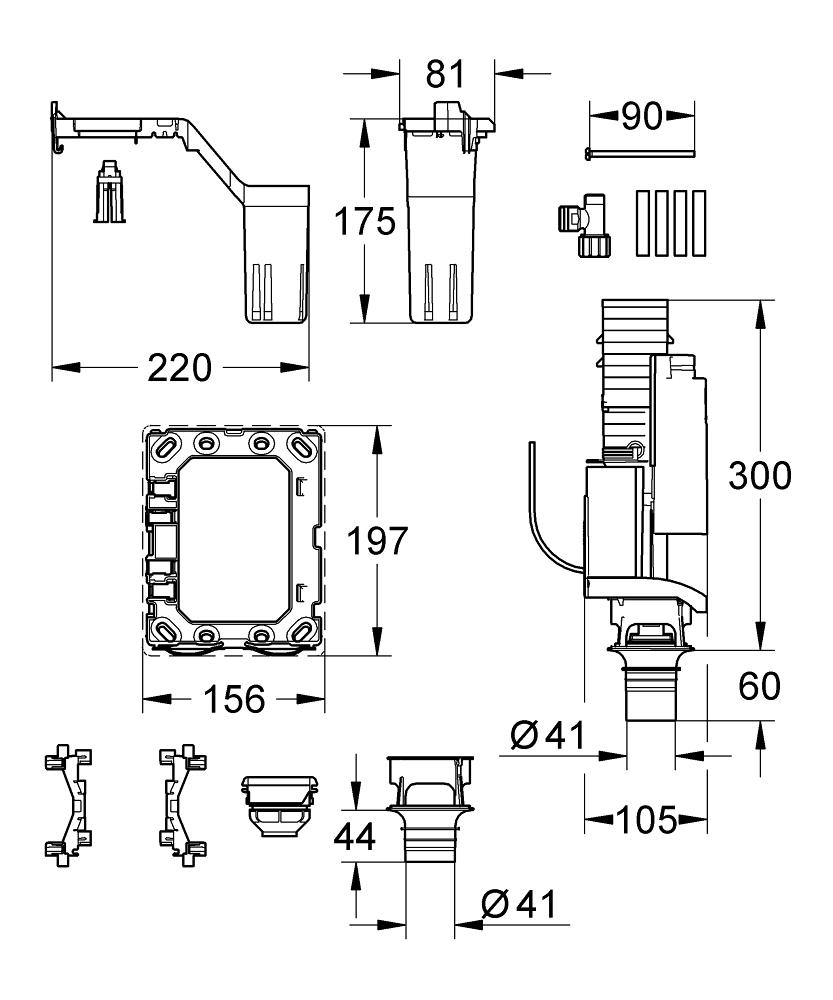

- with AV1
- for GROHE flushing cisterns with small inspection shaft
- not suitable for Skate Cosmopolitan with wood or glass surface
- fixing frame with opening function
- with box for support of aromatic tabs
- for chlorine-free tabs only
- pneumatic dual flush discharge valve with valve seat
- angle valve ½"
- for all GROHE flush plates 156 x 197 mm
| Vị trí | Mô tả sản phẩm | Số đơn hàng |
|---|---|---|
| 1 | Frame | 42358000 |
| 1.1 | Screw dia. 4x52 mm | 6636200M |
| 2 | Service valve | 42730000 |
| 3 | AV1 complete wiht pipe extension | 42320000 |
| 3.1 | Extension for overflow pipe | 42313000 |
| 3.2 | pneumatic hose | 42319000 |
| 3.3 | Ball seal dia. 9x6.8 mm | 42310000 |
| 4 | Valve seat for GD2 | 42315000 |
| 5 | AV1 complete | 66558000 |
| 5.1 | pneumatic hose | 42319000 |
| 5.2 | Ball seal dia. 9x6.8 mm | 42310000 |
| 5.3 | Valve seat for GD2 | 42315000 |
