Atrio 3-hole basin mixer L-Size
brushed cool sunrise
The GROHE Atrio three-hole basin mixer in stunning Brushed Cool Sunrise – timeless, pared-back, beautifully proportioned style for your high-end bathroom scheme
Every visual line and working part of this GROHE Atrio three-hole basin mixer in a chic and scratch-resistant Brushed Cool Sunrise finish has been given careful thought out by our designers and craftspeople to produce an elegant, high-performing mixer. A truly premium product, this hand-assembled tap strikes just the right note of luxury. Operation is via the two cross-handles, offering precise control over the life of the tap. Two sets of caps are included, one with subtle ‘H’ and ‘C’ markings, and one plain set. The tap has a high C-spout that swivels 150° for extra user comfort. It's also eco-friendly, limiting the water flow to sustainable 5 l/min (at 3 bar) without compromising performance. And it comes with a convenient pop-up waste set. GROHE Atrio – the icon of elegance and precision.
- Lõi van ceramic 1/2”, xoay 90°
- Bề mặt mạ GROHE Long-Life
- Công nghệ GROHE EcoJoy tiết kiệm nước và đảm bảo lưu lượng hoàn hảo
- maximum flow rate (at 3 bar): 5 l/min
- swivelling tubular spout with Mousseur and stop limiter
- Diện tích quay có thể điều chỉnh được 0° / 150° / 360°
- Bộ xả chậu 1 1/4"
- Dây cấp linh hoạt, chịu được áp suất giữa vòi phun và van khóa hai bên
- with cross handles
- Two different sets of caps included. One set with "H" and "C" marking, one set without marking.
Dữ liệu CAD

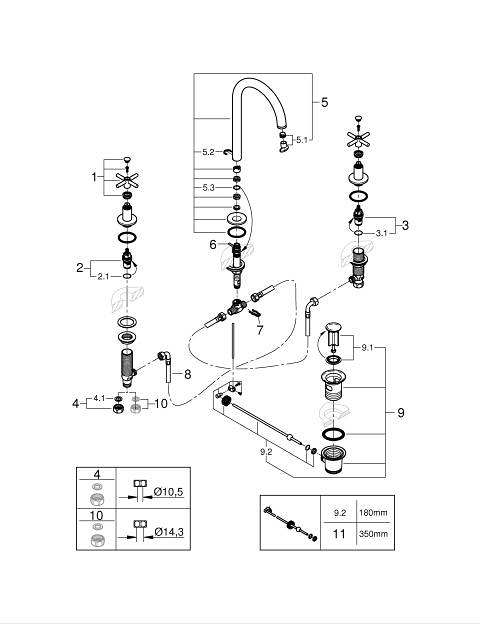

| Vị trí | Mô tả sản phẩm | Số đơn hàng |
|---|---|---|
| * Phụ kiện đặc biệt | ||
| 1 | Cross handles | 14215GN0 |
| 2 | Ceramic headpart, 1/2" | 45882000 |
| 2.1 | O-ring ø18.2 x ø1.7 | 0392400M |
| 3 | Ceramic headpart, 1/2" | 45883000 |
| 3.1 | O-ring ø18.2 x ø1.7 | 0392400M |
| 4 | Coupling nut 1/2" x 10.5 mm | 1290100M |
| 4.1 | Fibre seal dia. 12x2 mm | 0138900M |
| 5 | Spout | 101298GN00 |
| 5.1 | Flow straightener | 48408000 |
| 5.2 | Safety ring | 4826600M |
| 5.3 | Sealing washer | 0128500M |
| 6 | Pop-up rod | 65196GN0 |
| 7 | Fixing clamp | 6554100M |
| 8 | Flexible connection hose | 45704000 |
| 9 | waste set basin 1 1/4" | 28910GN0 |
| 9.1 | Plug | 07182GN0 |
| 9.2 | Eccentric rod | 07052000 |
| 10 | Coupling nut 1/2" x 14.5 mm | 1290200M* |
| 11 | Eccentric rod | 07341000* |
